Software-Defined Access Overview

SDA uses one unified fabric to apply policy across both wired and wireless access.

• Intent-based model: IT defines policy once and the fabric applies it consistently.
• One converged fabric spans seating, concourses, hospitality, and operations areas.
• Automates onboarding, segmentation, and access control for users and devices.
• Carries key venue services: BMS, Vision Edge digital signage, app traffic, video, guest Wi-Fi, and operations traffic.

SDA Architecture

What this means in plain English: Users and devices can move across the stadium while keeping the same security policy.

• Catalyst Center: Centralized "brain" used to design, provision, manage, and assure the network. It centrally manages configuration, policy, and monitoring for all switches in the campus fabric.
• ISE: Identity Services Engine. Authenticates users/devices, assigns security groups, enables automated policy assignment using SGTs and TrustSec.
• Fabric Edge Nodes: Access switches where end devices connect (wired ports and wireless APs). Encapsulate traffic into VXLAN tunnels.
• Border Nodes: Gateways to external networks (data center, internet, WAN).
• Control Plane Node: "Map-server" that maintains a centralized database of where endpoints are located in the fabric.
• Underlay: Physical Layer 3 routed network using protocols such as IS-IS or OSPF.
• Overlay: Virtual network using VXLAN and LISP so multiple isolated virtual networks (VNs) share the same physical infrastructure.
• Fusion Router: Route-leaking between VRFs. Connects virtual networks to shared services (DHCP, DNS, NTP).

SDA Glossary

Context note: Here, "fabric" means SDA campus access architecture (underlay + overlay + policy), not IP Fabric for Media.

ACI Overview

ACI is a policy-driven SDN fabric for data centers. At Bernabeu, the data center runs an ACI Multipod design.

• Single policy model across network, security, compute, and virtual environments.
• Application requirements drive network policy.
• Multiple ACI pods are controlled by one APIC cluster.
• Pods communicate through the IPN (Inter-Pod Network).

Architecture

What this means in plain English: Traffic follows predictable leaf-to-spine paths, while APIC applies policy centrally.

• Spine Switches: Fabric backbone connecting all leaf switches (Nexus 9000 series).
• Leaf Switches: Access layer where endpoints connect (servers, storage, and APIC).
• Traffic Flow: All leaf-to-spine links use ECMP for load balancing and loop prevention.
• Underlay Routing: IS-IS protocol inside each pod distributes routes efficiently.
• APIC: Unified management point translating application policies to fabric configuration.
• Pod: Independent ACI unit (spine + leaf switches) with its own control system.

Multipod and IPN

Multipod: Multiple ACI pods under one APIC cluster. Faults can stay local to one pod while pods still interconnect.

• IPN: Layer 3 network connecting spine layers across pods.
• Links: High-speed 40GE connections in full-mesh topology (spine ↔ IPN nodes).
• Routing: Single OSPF area in a dedicated VRF.
• Overlay: VXLAN tunnels carry tenant traffic between pods seamlessly.
• Other recall terms: TEP Pool for VXLAN loopback addresses, COOP for endpoint tracking, MP-BGP for pod reachability, and vPC for one logical link across two switches.
• Goal: High-speed, resilient pod-to-pod backbone with fault isolation.

ACI Glossary

Wi-Fi Infrastructure Overview

Bernabeu Wi-Fi is designed for high-density coverage, availability, and security across all zones.

• Coverage spans seating, concourses, hospitality, and operations zones.
• Centralized controller model keeps policy, RF management, and visibility consistent.
• Primary stack: Catalyst 9800 WLC + Catalyst 9130AX APs.
• Lightweight AP model: configuration and policy are centralized on the controller.

Controller and AP Model

What this means in plain English: APs are managed from one place, so wireless settings stay consistent across the venue.

• Autonomous AP: Standalone mode; each AP is configured and managed independently.
• Lightweight AP: Controller-driven policy, firmware, and RF operations; no local configuration until the AP joins the controller.
• LWAPP: Legacy Cisco Unified Wireless control mode referenced in the source; CAPWAP is the Layer 3 control path between APs and controller.
• Catalyst 9800 WLC: Central point for security policies, QoS, intrusion prevention, RF management, mobility, and control transactions like 802.1X authentication.
• Catalyst 9130AX: Lightweight AP platform used in Bernabéu deployment.
• Benefits: Centralized control, consistent policy, and simpler operations at scale.

Deployment and CAPWAP

• APs sit on dedicated infrastructure VLAN (e.g., VLAN 2045).
• AP management subnet stays separate from user/client subnets.

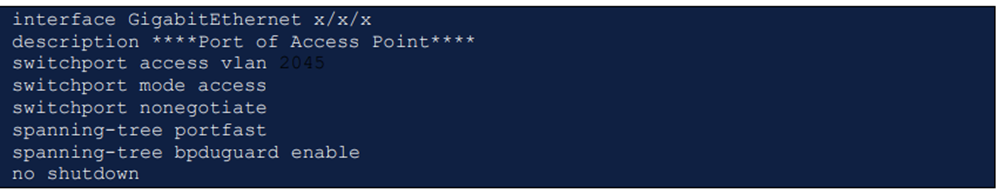

• AP switchports configured as access ports to the AP VLAN.
• APs run in local mode and connect on access ports mapped to the AP VLAN.

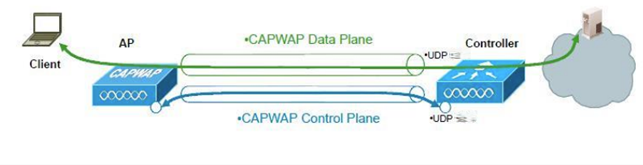

• For non-SDA SSIDs, client traffic traverses a CAPWAP tunnel between AP and controller.

Wi-Fi 6, 6E, and 7 Essentials

What this means in plain English: Newer Wi-Fi versions improve efficiency in crowds and reduce latency for interactive services.

• Wi-Fi 6 (802.11ax): Improves efficiency in dense environments; OFDMA lets multiple clients share transmissions efficiently.
• Wi-Fi 6E: Extends Wi-Fi 6 into 6 GHz for additional spectrum.

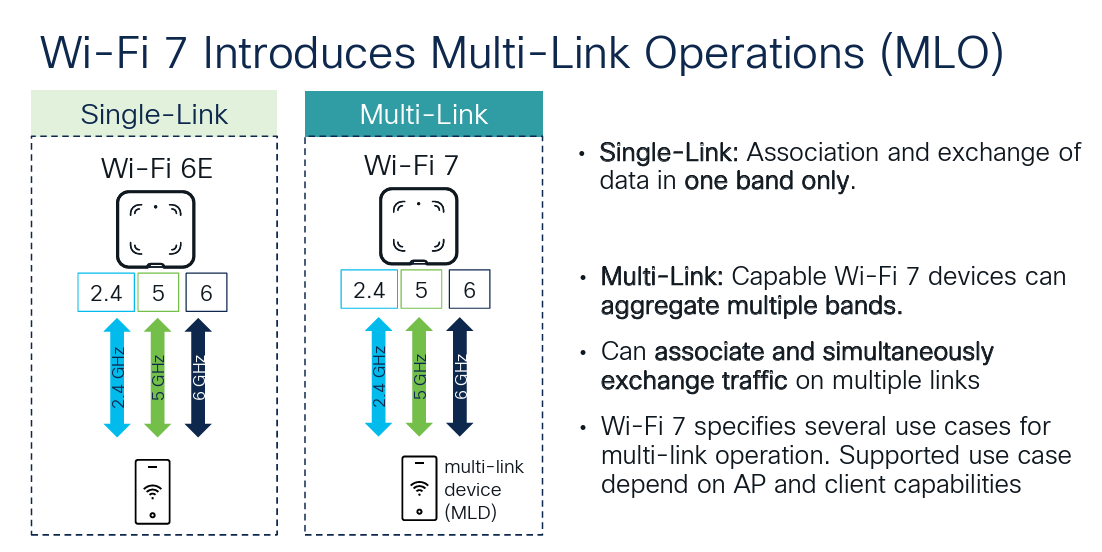

• Wi-Fi 7 (802.11be): Adds MLO, wider channels (up to 320 MHz), and lower, more predictable latency.

Wi-Fi 7 vs Wi-Fi 6E (Quick Comparison)

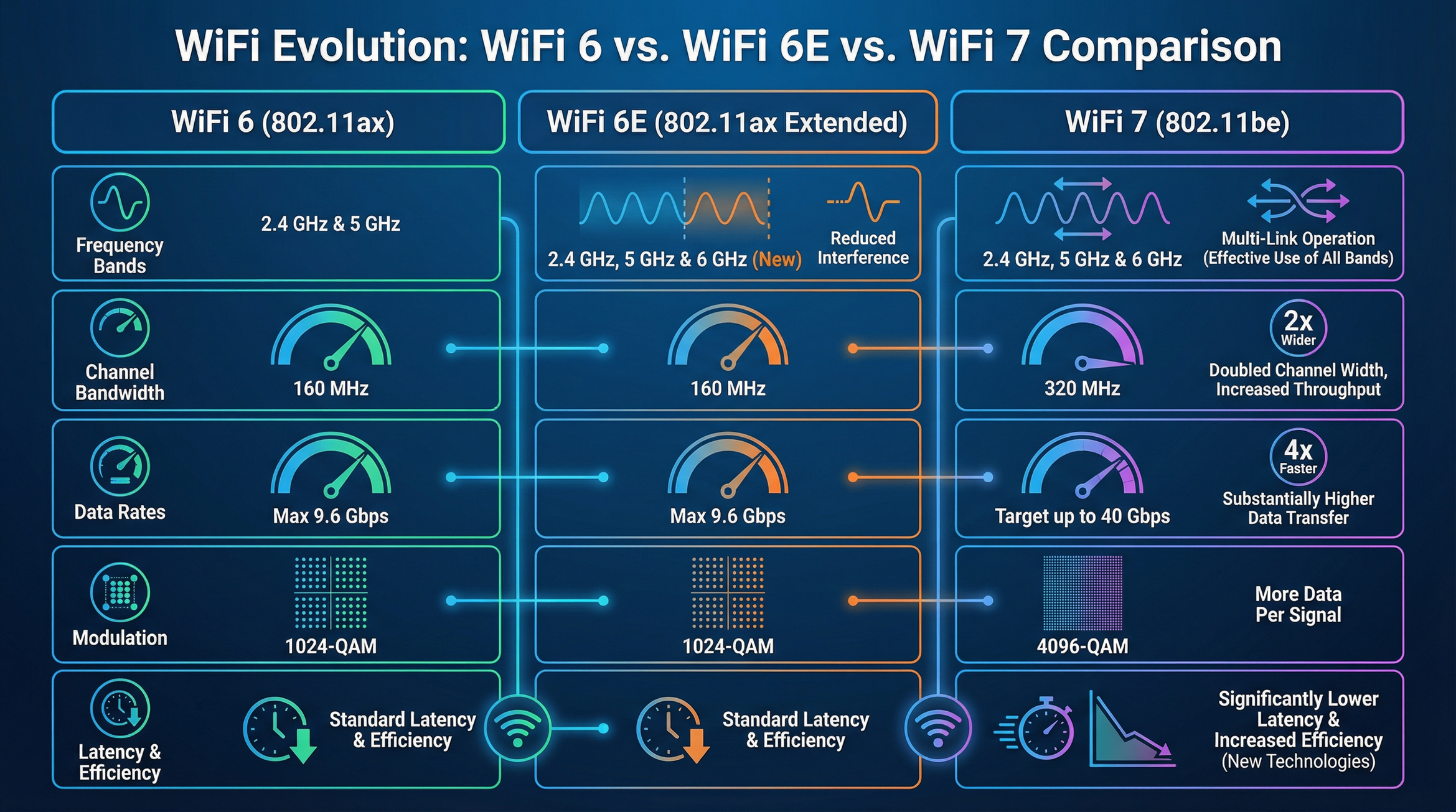

• Channel width: Wi-Fi 6/6E up to 160 MHz; Wi-Fi 7 up to 320 MHz.
• Peak data rate: Wi-Fi 6/6E up to 9.6 Gbps; Wi-Fi 7 up to 40 Gbps (target).
• Modulation: Wi-Fi 6/6E uses 1024-QAM, while Wi-Fi 7 moves to 4096-QAM for higher data density.
• Operational outcome: Wi-Fi 6/6E improves dense-client efficiency; Wi-Fi 7 improves throughput and latency for real-time experiences.

Band Select Behavior

• Why it exists: 2.4 GHz is usually more congested, so Band Select steers dual-band clients toward 5 GHz.
• Default state: Band Select is disabled per SSID by default.
• How it works: The controller delays some 2.4 GHz probe responses so 5 GHz is more attractive during initial join.
• Caution: For interactive voice/video traffic, Band Select can impair roaming on some client types.

RRM in Daily Operations

• RRM auto-onboarding: Detects new lightweight APs and automatically tunes channel/power to balance coverage and capacity.
• Continuous sensing: APs perform short off-channel scans (not greater than 60 ms) for noise, interference, and rogues.
• Low overhead: Each AP spends about 0.2% of time scanning, limiting client impact.
• Distributed timing: Adjacent APs are staggered so they do not scan off-channel at the same time.
• Practical value: Keeps RF plans adaptive in high-density venues with less manual retuning.

Rogue Management and aWIPS Workflow

• Core threat model: Rogue APs can hijack clients, capture credentials, and disrupt service (including man-in-the-middle and denial-of-service attacks).
• Platform integration: WLC + DNAC integration centralizes monitoring and rogue visibility.
• aWIPS role: Signature-based and anomaly-based detection with alarms for faster response.
• Operational view: Rogue and aWIPS dashboards support triage and policy tuning.
• Governance caution: Auto-containment may have legal/policy implications and should be used with clear operational controls.

RF Operations

• Band Select: Useful when 2.4 GHz is crowded, but it can hurt roaming for some real-time voice/video clients.
• RRM: Auto-adjusts AP channel and power to keep coverage and capacity balanced.
• Bottom line: These tools reduce manual RF tuning, but should be used with client behavior in mind.

Wireless Security

• Detection stack: Managed APs + DNAC dashboards provide rogue visibility and alarms.
• aWIPS: Signature/anomaly-driven threat detection and policy monitoring.
• Operational caution: Auto-containment can have legal and policy implications.

Wi-Fi Glossary

IP Fabric for Media Overview

What this means in plain English: IPFM replaces one-cable-per-signal SDI with scalable IP transport for broadcast video and audio flows.

IP Fabric for Media (IPFM): Replaces rigid SDI cabling with a flexible IP network for video, audio, and ancillary data.

• Carries video (4K/8K), audio, and ancillary data as multiple simultaneous streams.
• Uses a spine-and-leaf architecture for scale and consistent, predictable latency.
• Uses Cisco Nexus 9000 switches with NDFC (DCNM in source notes) for management and automation.
• Media traffic primarily uses UDP multicast so one source stream reaches many receivers efficiently.
• Advanced capabilities include Multi-Site, NAT, and RTP flow monitoring.
• At Bernabéu: 2,500+ screens, 80,000+ fan devices, worldwide broadcast.

Protocols and Standards

What this means in plain English: These protocols handle routing, multicast delivery, timing, and stream-quality checks for live production.

• OSPF: Unicast routing within fabric.
• PIM + IGMP: Multicast delivery and receiver join/leave control for media streams.
• PTP: Precision timing so broadcast workflows stay synchronized to nanosecond-level accuracy.
• SMPTE 2110: Standard for carrying video, audio, and ancillary data as separate IP streams.
• AES67: Standard for transporting high-quality professional audio over IP.
• NBM: Non-Blocking Multicast. Bandwidth-aware multicast routing helps prevent link oversubscription.
• RTP: Real-Time Transport Protocol used to monitor packet loss and stream quality.

Why this protocol set matters for IPFM: PTP timing + multicast control + RTP monitoring keep live streams synchronized, low-latency, and stable.

IP Fabric Glossary

Context note: "IP Fabric" here means a high-throughput spine-and-leaf transport network for media flows, which is different from SDA campus fabric.
